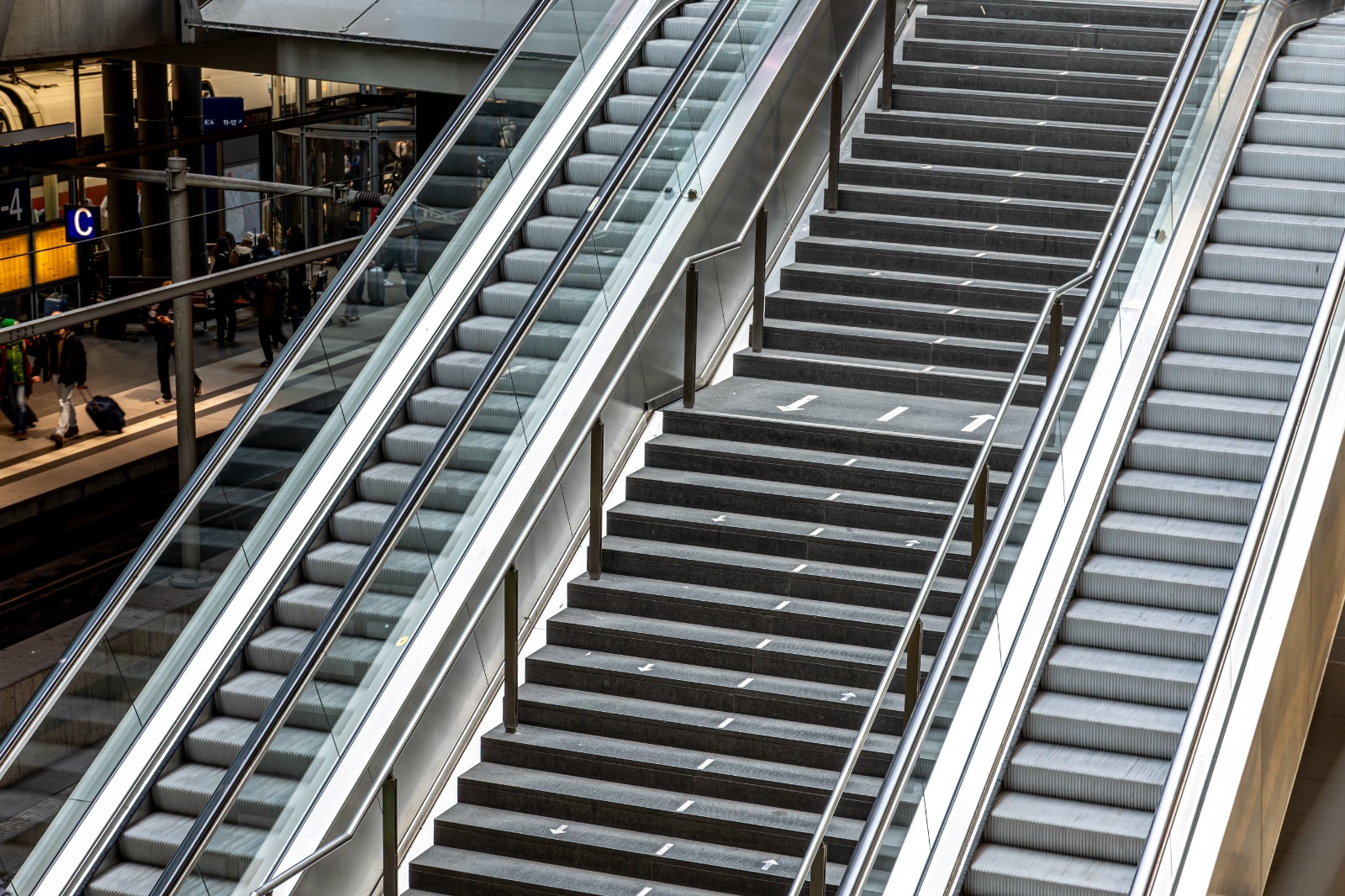

Escalator Step Chain Maintenance: Problems & Replacement Guide
Escalators depend on several mechanical components working together to move passengers safely and continuously. Among these components, the step chain plays a critical role by connecting and driving the escalator steps along their intended path. Proper Escalator Step Chain Maintenance helps reduce mechanical wear, identify developing problems and support reliable operation. For specific replacement requirements, an experienced Escalator components supplier UAE can also help with compatible parts and component selection.
For building owners, facility managers and maintenance teams in the UAE, regular inspection is particularly important because escalators in shopping malls, metro stations, airports and commercial properties can operate for long hours. Understanding how the step chain works, what causes common failures and when replacement may be required can help maintenance teams make better decisions.
What Is an Escalator Step Chain?
An escalator step chain is a continuous mechanical chain that connects the escalator steps and transfers movement through the step assembly. As the drive system operates, the chain moves the steps along the escalator's track while maintaining their alignment and movement.
The chain typically works together with components such as:
- Step axles and rollers
- Chain links and pins
- Chain sprockets
- Step assemblies
- Guide tracks
- Drive and tensioning components
The exact design can vary according to the escalator model and manufacturer. Therefore, replacement components should be selected based on the equipment's specifications and compatibility rather than appearance alone.
How Does an Escalator Step Chain Work?
The step chain operates as part of the escalator's mechanical drive system. The motor supplies power to the drive mechanism, which turns the sprockets. The sprockets engage with the chain and create continuous movement.
The basic operating process is:
- The escalator motor generates rotational power.
- The drive mechanism transfers this power to the drive sprocket.
- The sprocket engages with the step chain.
- The chain moves through the escalator's tracks.
- Connected steps travel along the upper and lower sections.
- The steps return through the opposite side of the loop.
Because the chain operates continuously, friction, contamination, incorrect tension and inadequate lubrication can gradually affect its condition.
Key Escalator Step Chain Components
Understanding the main escalator step chain components makes it easier to identify wear and maintenance requirements.
Chain Links and Pins
Links form the main structure of the chain, while pins connect the moving sections. Repeated movement can cause wear around these contact points.
Rollers and Axles
Rollers help the step assembly travel along the guide tracks. Damaged or worn rollers can increase resistance and place additional stress on the mechanical system.
Sprockets
Sprockets engage with the chain and transfer movement. Worn sprocket teeth may affect chain engagement and contribute to uneven movement.
Step Assembly
The chain is connected to the escalator's step system. Problems within the chain or connected components can affect step movement and alignment.
Guide Tracks
Guide tracks control the path of the steps and associated rollers. Contamination, wear or misalignment can increase mechanical resistance.
Why Is Escalator Step Chain Maintenance Important?
Escalator Step Chain Maintenance helps detect wear before mechanical problems become more serious. Regular inspection and appropriate servicing can also help maintain smooth movement and reduce unnecessary stress on connected components.
Key benefits include:
- Early identification of worn components
- Reduced risk of unexpected mechanical problems
- Better step movement and alignment
- Improved reliability of the escalator system
- Better planning of spare parts requirements
- Reduced likelihood of secondary component damage
- More predictable maintenance planning
Maintenance does not mean replacing components unnecessarily. Instead, the objective is to monitor their condition and take corrective action when inspection indicates that it is required.
Common Escalator Step Chain Problems
Several conditions can affect step-chain performance. Recognizing early warning signs can help maintenance teams investigate the underlying cause.
1. Chain Wear
Continuous movement can gradually wear pins, links and other contact surfaces. Excessive wear may result in increased play within the chain and affect its operation.
2. Poor Lubrication
Insufficient or inappropriate lubrication can increase friction between moving parts. This can accelerate wear and contribute to abnormal operating conditions.
Lubrication requirements should always follow the equipment manufacturer's maintenance recommendations.
3. Corrosion
Moisture and unsuitable environmental conditions can contribute to corrosion. This can be especially relevant where equipment is exposed to humidity, dust or cleaning chemicals.
4. Incorrect Chain Tension
Incorrect tension can affect how the chain engages with the drive system. Both excessive and insufficient tension can create mechanical problems.
5. Damaged Rollers
Worn or damaged rollers can create resistance and abnormal movement. The condition of rollers should therefore be assessed alongside the chain rather than treating the chain as an isolated component.
6. Sprocket Wear
A worn sprocket may not engage correctly with the chain. If chain and sprocket wear occur together, replacing only one component may not always provide a long-term solution.
7. Contamination
Dust, debris and other contaminants can accumulate around mechanical components. Contamination can interfere with smooth movement and contribute to accelerated wear.
How to Perform an Escalator Chain Inspection
An escalator chain inspection should be carried out by qualified personnel following the manufacturer's maintenance procedures and applicable safety requirements.
A typical inspection may include:
- Visual examination
Look for corrosion, damaged links, unusual wear or contamination. - Check chain condition
Examine links, pins and connected components for excessive wear or movement. - Inspect rollers and axles
Check for damage, abnormal wear and restricted movement. - Examine sprockets
Look for worn or damaged teeth and signs of improper engagement. - Check alignment and tension
Verify that the chain and associated components are operating within the manufacturer's requirements. - Review lubrication
Confirm that lubrication is appropriate and being applied according to the recommended maintenance procedure. - Monitor abnormal operation
Unusual noise, vibration or irregular step movement should be investigated rather than ignored.
The exact inspection procedure and measurement limits depend on the escalator manufacturer and model.
When Is Escalator Step Chain Repair Required?
Escalator Step Chain Repair may be considered when inspection identifies a localized or serviceable issue and the manufacturer permits repair rather than complete replacement.
Possible warning signs include:
- Unusual chain noise
- Visible corrosion
- Excessive looseness
- Irregular step movement
- Damaged rollers or pins
- Abnormal vibration
- Uneven chain movement
- Visible sprocket wear
A qualified technician should determine whether repair is appropriate. Attempting to repair a safety-critical mechanical assembly without the required technical knowledge can create additional risks.
When Should the Step Chain Be Replaced?
Escalator Step Chain Replacement may become necessary when the chain has reached an unacceptable level of wear, has sustained significant damage or no longer meets the manufacturer's service requirements.
Replacement decisions should consider:
- Chain wear condition
- Manufacturer specifications
- Equipment age and operating history
- Sprocket condition
- Roller and axle condition
- Availability of compatible replacement parts
- Maintenance records
- Overall escalator condition
Replacing the chain should not be based only on a fixed age unless the manufacturer specifies such a requirement. Condition-based assessment is generally more useful for determining the actual maintenance requirement.
How to Choose the Right Escalator Step Chain
Selecting the correct chain is more than matching its physical appearance. Compatibility with the specific escalator model is essential.
Before purchasing, maintenance teams should verify:
- Escalator manufacturer and model
- Chain dimensions
- Pitch and configuration
- Roller specifications
- Connecting arrangements
- Sprocket compatibility
- Material and construction
- Manufacturer or approved technical specifications
- Required quantity
- Availability of related components
Working with an experienced escalator step chain supplier can make the identification and sourcing process easier, particularly when the original part number or equipment documentation is available.
Factors Affecting Escalator Step Chain Service Life
The service life of a step chain depends on several operating and maintenance factors rather than one universal timeframe.
Important factors include:
Operating Hours
An escalator operating for extended periods experiences more cycles than equipment used occasionally.
Passenger Load
Frequent heavy passenger traffic can increase the workload placed on mechanical components.
Maintenance Quality
Regular inspection, correct lubrication and timely replacement of worn parts can help prevent avoidable deterioration.
Environment
Dust, moisture, temperature and cleaning practices can affect mechanical components.
Installation and Alignment
Incorrect installation or alignment can create additional stress and uneven wear.
Common Maintenance Mistakes to Avoid
Poor maintenance practices can sometimes create problems instead of preventing them.
Avoid these common mistakes:
- Using unsuitable lubricants
- Ignoring unusual noise or vibration
- Delaying inspection after abnormal operation
- Installing incompatible replacement parts
- Replacing components without checking related parts
- Ignoring sprocket or roller wear
- Applying excessive lubrication
- Performing mechanical work without proper isolation and safety procedures
Maintenance should always follow the escalator manufacturer's instructions and applicable safety procedures.
Why Quality Spare Parts Matter
The quality and compatibility of replacement parts can influence the reliability of an escalator repair or maintenance job. A technically unsuitable component may create alignment, engagement or wear issues even if it appears similar to the original part.
When sourcing an Escalator Step Chain, provide the supplier with as much equipment information as possible, including the manufacturer, model, existing part number and relevant dimensions.
For UAE maintenance teams, keeping commonly required escalator spare parts available can also help reduce delays when a component needs to be replaced.
Choosing an Escalator Step Chain Supplier in the UAE
When comparing an escalator step chain supplier, focus on technical compatibility and product information rather than price alone.
Consider:
- Availability of the required component
- Product specifications
- Compatibility support
- Part identification assistance
- Quality and material information
- Lead time
- Availability of related escalator parts
- Technical documentation where applicable
A reliable supplier should be able to help identify the appropriate component based on the escalator's technical details.
Conclusion
Proper Escalator Step Chain Maintenance is an important part of keeping escalator mechanical systems operating reliably. Regular inspection can help identify chain wear, lubrication issues, corrosion, damaged rollers, sprocket problems and other conditions before they develop into larger maintenance concerns.
For UAE properties with frequently used escalators, maintenance teams should follow manufacturer recommendations, use compatible spare parts and address unusual operating conditions promptly. When replacement becomes necessary, accurate equipment information and a technically reliable supplier can help ensure the correct component is sourced for the specific escalator system.
Frequently Asked Questions
How often should an escalator step chain be inspected?
Inspection frequency depends on the escalator manufacturer, operating conditions, usage and applicable maintenance requirements. High-traffic escalators may require closer monitoring than equipment with lighter usage. Maintenance teams should follow the manufacturer's inspection schedule and investigate unusual noise, vibration or movement immediately.
Can a worn step chain be repaired?
In some cases, a specific component or connection may be serviceable, but repair depends on the chain design, condition and manufacturer's requirements. A qualified technician should assess the assembly and determine whether repair is technically appropriate or whether replacement is safer and more practical.
How do I know which step chain to buy?
Start with the escalator manufacturer and model number, then verify the original part number, chain configuration, dimensions and related component specifications. Providing this information to a specialist supplier can help reduce the risk of ordering an incompatible chain.
Does lubrication prevent all chain problems?
No. Proper lubrication can reduce friction and help control wear, but it cannot eliminate problems caused by corrosion, incorrect tension, damaged rollers, worn sprockets, contamination or misalignment. Lubrication should be part of a broader preventive maintenance program.
What should be checked before replacing an escalator chain?
The chain should be assessed together with connected components such as sprockets, rollers, axles and guide arrangements. Checking these parts helps identify the underlying cause of wear and determine whether additional components should also be serviced or replaced.
Are escalator step chains different between manufacturers?
Yes. Chain design, dimensions, configuration and associated components can vary between manufacturers and escalator models. This is why a replacement should be selected based on the equipment's technical specifications rather than assuming that one chain will fit multiple systems.
